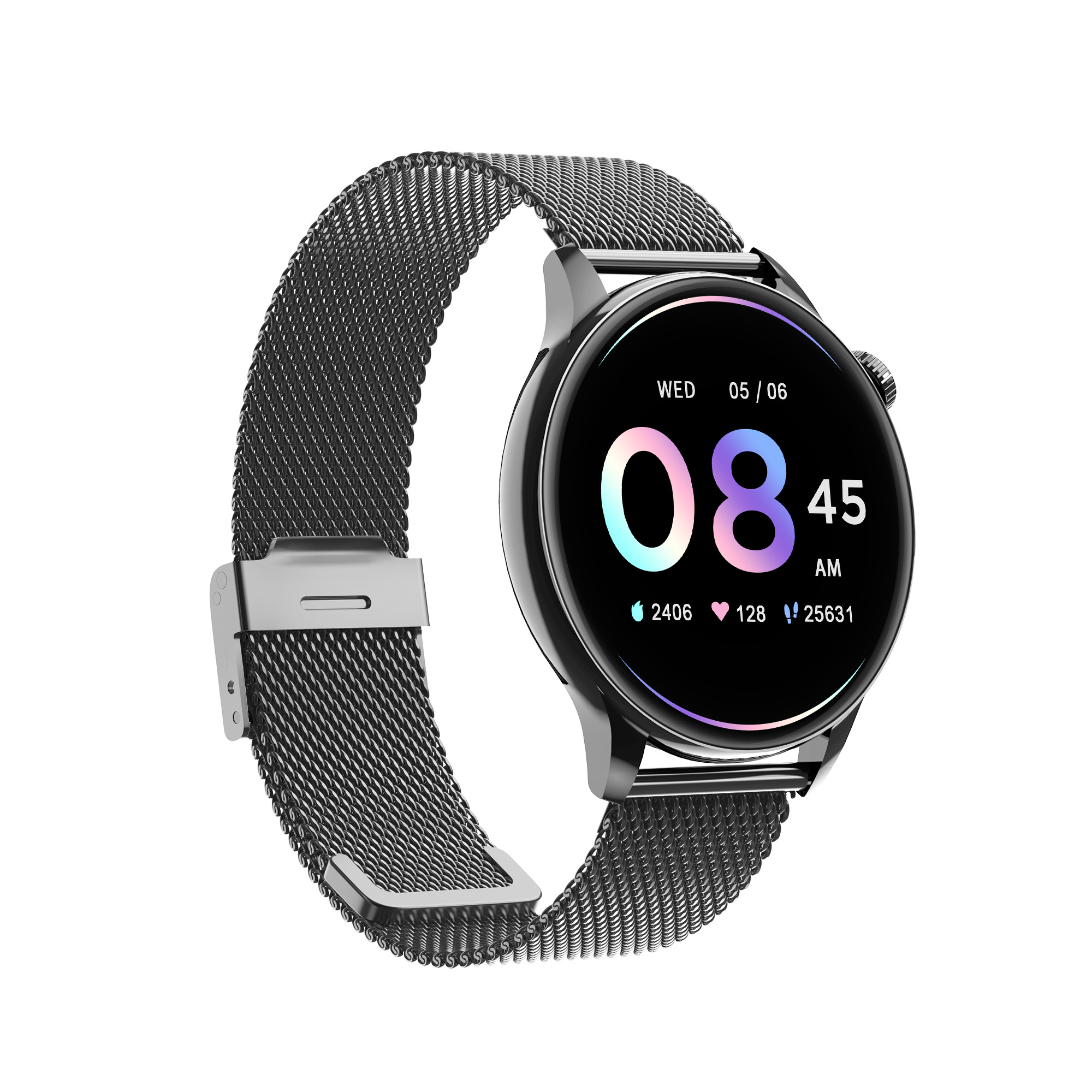

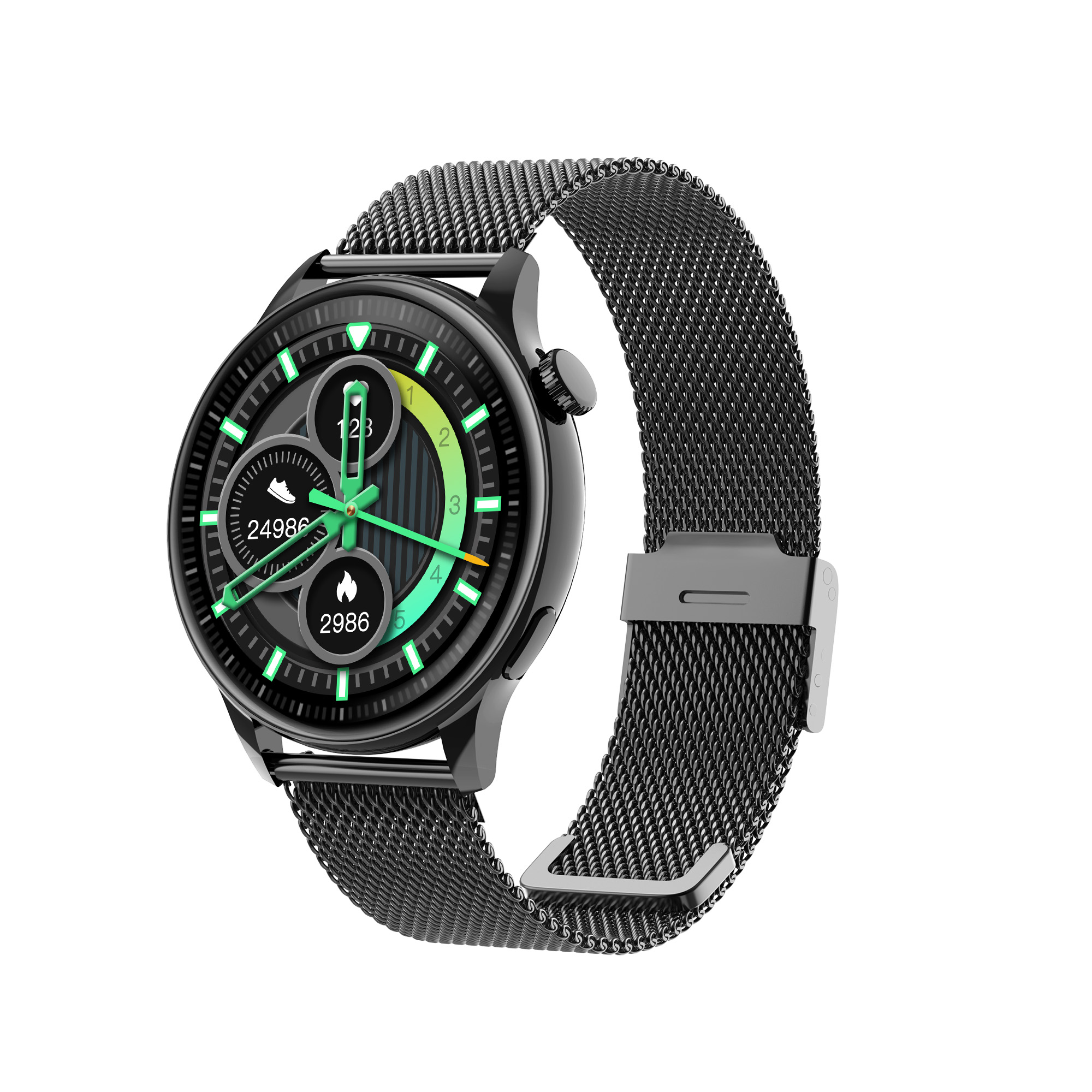

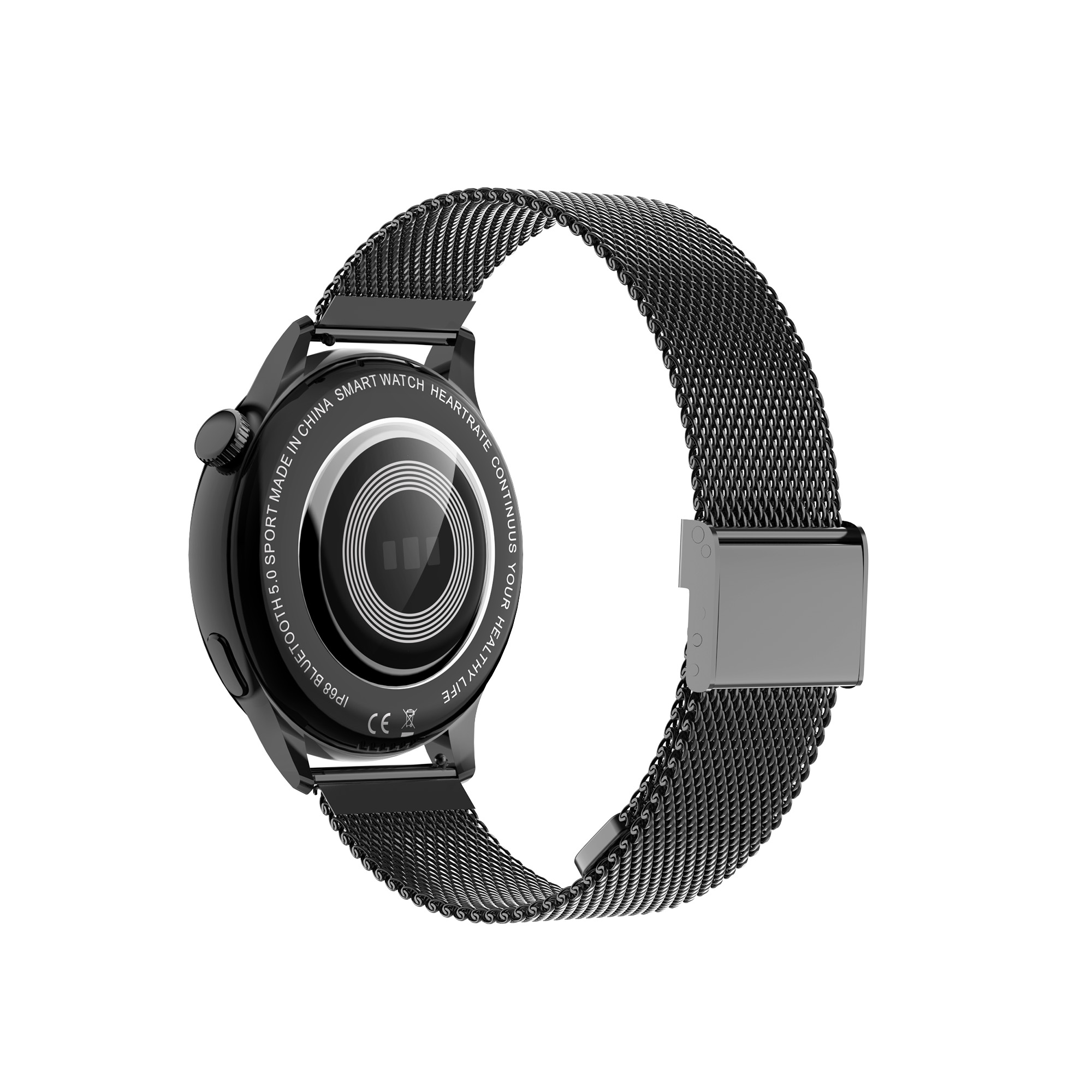

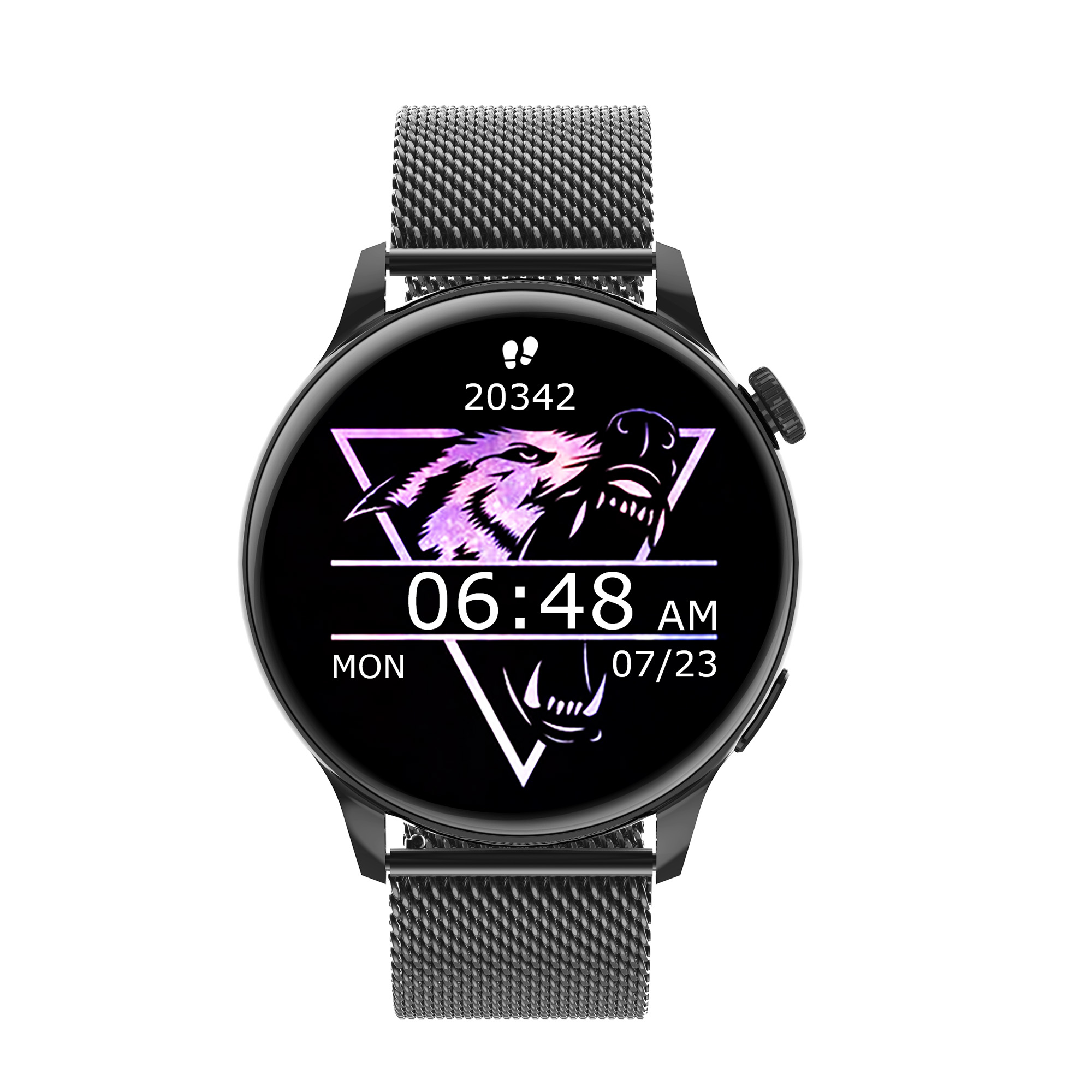

PW13
Chipset：Realtek RTL8762DT
Compatible system：TUYA
Flash memory：RAM：192KB+ROM：256KB+128Mb Nor flash
Screen ：1.3 inch，AMOLED， 360*360，TP-OGS-Haisuochuang816D
Waterproof level：IP67
APP： Tuya
Bluetooth ：BLE5.1
Bluetooth call chip：JL 6963A
NFC：support
g-sensors：support
Heart rate：LC11S
Capacity：200mAH，
Battery type： Lithium polymer battery
Charging method ：Wireless charging
Charging time：120 minutes
Battery life：7 days
| Color |
|
-
Parameter
MoreProduct model PW13 Detailed parameters Hardware parameters Solution provider APP TUYA Main control chip CPU Realtek RTL8762DT Compatible system
Flash MemoryTUYA Flash RAM RAM：192KB+ROM：256KB+128Mb Nor flash Screen type AMOLED Screen size 1.32 inch Touch screen IC/type 360*360 Touch Screen IC/Type ALL TP--OGS Connection parameters Bluetooth calls JL 6963A Bluetooth BLUE5.1 WIFI No NFC Access control Sensor Acceleration sensor gsensors Support ECG None heart rate LC11S GPS None Body temperature None Battery Battery Type Polymer lithium battery Capacity 200mAH Charging mode Wireless charging APP software function sports Step count, calories, distance, movement pattern health Blood pressure, heart rate, blood oxygen, sedentary reminder, sleep monitoring, automatic heart rate monitoring, etc. Smart reminder Incoming call, SMS, email, WeChat、QQ、Facebook、Twitter、WhatsApp、LinkedIn、Instagram、Messenger、Snapchat、Line、Kakao Talk、Viber、Skype other Lift the wrist to light the screen, alarm clock reminder, remote control to take photos, find the mobile phone, etc. Watch Hardware Features Motion data Distance, calories, steps, real-time heart rate, exercise duration Sport mode selection Walking / Running / Mountaineering / Cycling / Basketball / Swimming / Badminton / Football / Elliptical Machine / Yoga / Table Tennis / Skipping Rope / Tennis / Baseball / Rugby / Hula Hoop / Golf / Long Jump / Crunches / Volleyball other Time display, wrist lift to brighten the screen, call reminder, SMS reminder, alarm clock reminder, remote control to take pictures, find mobile phone, dial switch, brightness adjustment, language switch, QR code, stopwatch, weather, dial, password lock, Alipay, music, System reset to factory settings, music control, vibration settings, wrist lift duration settings, screen-on duration settings etc. Other parameters waterproof level IP67 Charging time 120 minutes battery life 7 days Standby power consumption Minimum 70uA Charger Specifications DC 5V Firmware language Firmware language of the product is optional (Chinese, English, Spanish, Portuguese, German, Italian, French, Russian, Japanese, Polish, Vietnamese, Korean, Arabic, Hebrew, Thai, Croatian, Turkish, Czech, Dutch, Indian, Malaysian, Finnish, Greek and Romanian). English is the default language from the factory
